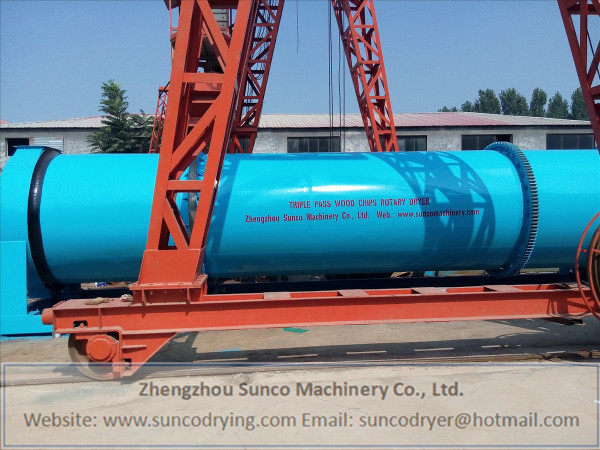

Wood chips dryer is a equipment specially designed and manufactured for drying wood chips, sawdust, wood powder and other materials. Wood chips dryer machine has the characteristics of large drying capacity, remarkable energy saving effect and less maintenance cost.
The main working principle of Wood chips dryers is: the wood chips enters in the dryer by the combined material plate and the rotating cylinder body, the material is boiled and fluidized in the cylinder, and the hot air fully touches the material to complete the drying process, and the water become water vapor and to be sucked out in time by the induced draft fan.
The maintenance of wood chips dryers machine is an extremely important and regular job. It should be closely coordinated with the extremely operation and maintenance, etc., and there should be full-time personnel to carry out the duty inspection.
Installation test of wood chips dryer machine:
1. The wood chips dryer equipment should be installed on a horizontal concrete foundation and fixed with anchor bolts.
2. When installing, pay attention to the vertical of the dryer main body and the horizontal.
3. After installation, check whether the bolts of each part of wood chips dryer are loose and whether the door of the host machine is tightened. If so, please tighten it.
4. Configure the power cord and control switch according to the power of the device.
5. After the inspection is completed, carry out the no-load test run, and the test run can be carried out normally.
Machine maintenance of wood chips dryer:
1. The shaft bears the full load of the negative machine, so good lubrication has a great relationship with the bearing life. It directly affects the service life and operating rate of the machine. Therefore, the injected lubricant must be clean and the seal must be good. The main oil injection point (1) rotating bearing (2) roller bearing (3) all gears (4) movable bearing and sliding plane.
2. Newly installed wheels are prone to loosening and must be checked frequently.
3. Pay attention to whether the work of each part of the wood chip dryer machine is normal.
4. Pay attention to check the degree of wear of easy-wear parts, and pay attention to replace worn parts at any time.
5. The bottom plane of the mobile device should be free of dust and other objects to prevent the movable bearing from moving on the bottom frame when the wood chips dryer machine encounters materials that cannot be broken, resulting in a serious accident.
6. If the bearing oil temperature rises, the wood chips drying machine should be stopped immediately to check the cause and eliminate it.
7. If there is impact sound when the rotating gear is running, the wood chips dryers should be stopped and checked immediately and eliminated.
